FM EX52 4D
Direct Drive
Overlock Machine
View Spec
FM-900ED-4-F
Direct Drive Super High Speed
Overlock Sewing Machine
View Spec
FM 600D 01CB
High-speed Cylinder-bed
Interlock Sewing Machine
View Spec
FM600-01CB/UT
Cylinder-bed High-speed
Interlock Sewing Machine
View Spec

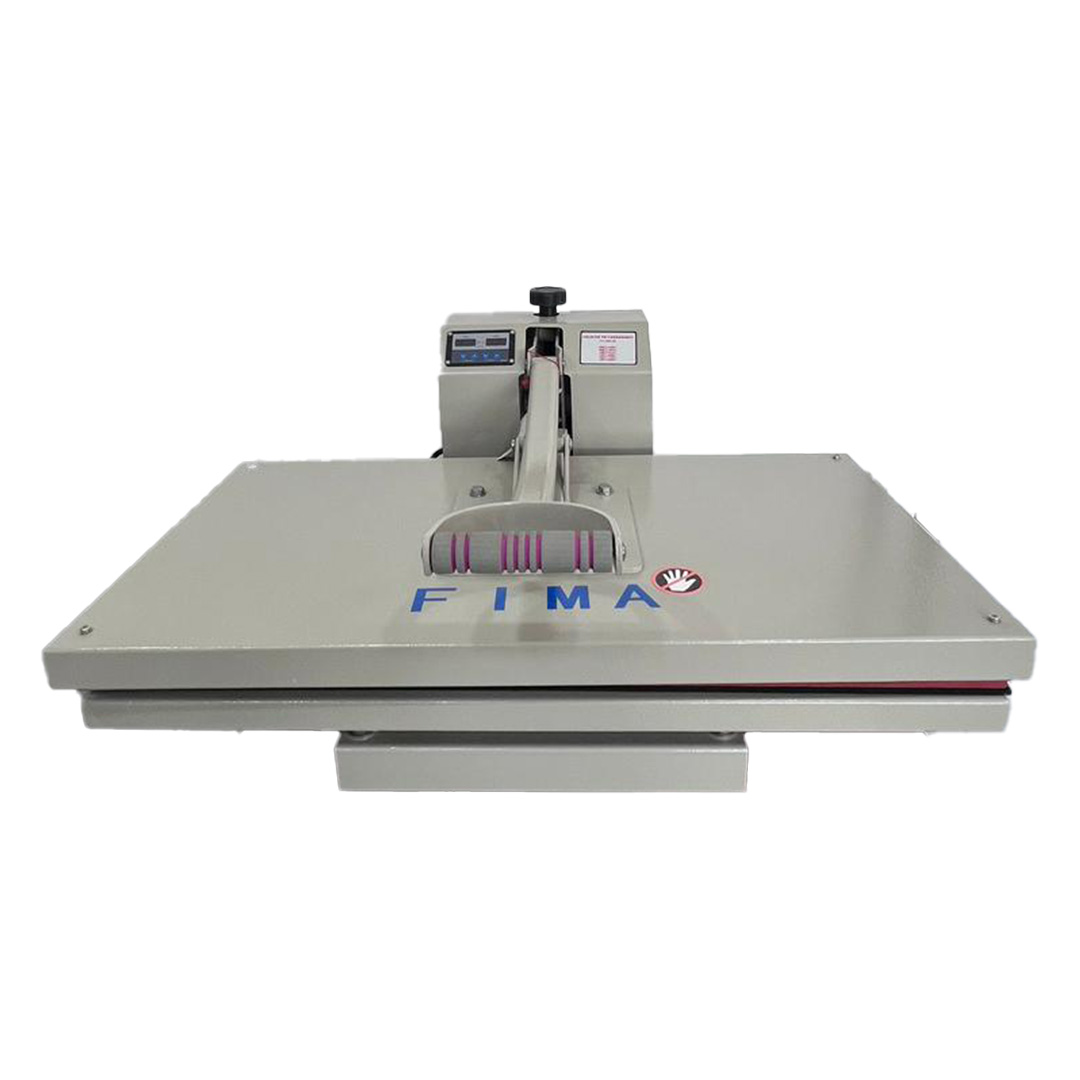

Manual Heat Press Machine
HJ-82
Manual Heat Press/ Heat Transfer Machine
80*40CM With Big Upper Heating Element
Manual heat press machine may hot transfer all kinds of pyrography and hot drills onto cotton, linen, and chemical fiber materials; it is applicable for the heat treatment of screen printing, mucilage, foaming, and other processes; it is also able to copy color codes, portraits, and landscape pictures onto vitrolites and metal boards; it is particularly suitable for making medals, badges, and fashion T-shirts to ensure economy and practicability.
Electronic digital display for temperature control with an accuracy of (±2 C); providence of fine-tuning knob; Fever aluminum casting thermal conductivity principle,the radiation pipe and the hot plate is whole , temperature uniformity, temperature coefficient is small and power saving.
Automatic constant temperature system to ensure flexible pressure adjustment and reliable performance; Electronic time control and process completion indication;
Designed in accordance with ergonomics to ensure simple operation and uniform pressure.
| Manual Heat Press Machine | |
|---|---|
| Model | HJ-82 |
| Voltage | 220V |
| Power | 3.2kw |
| Working Dimension | 80 x 40cm |
| Working Temperature | Room temperature -250°C |
| Time Delay | 1-300S |

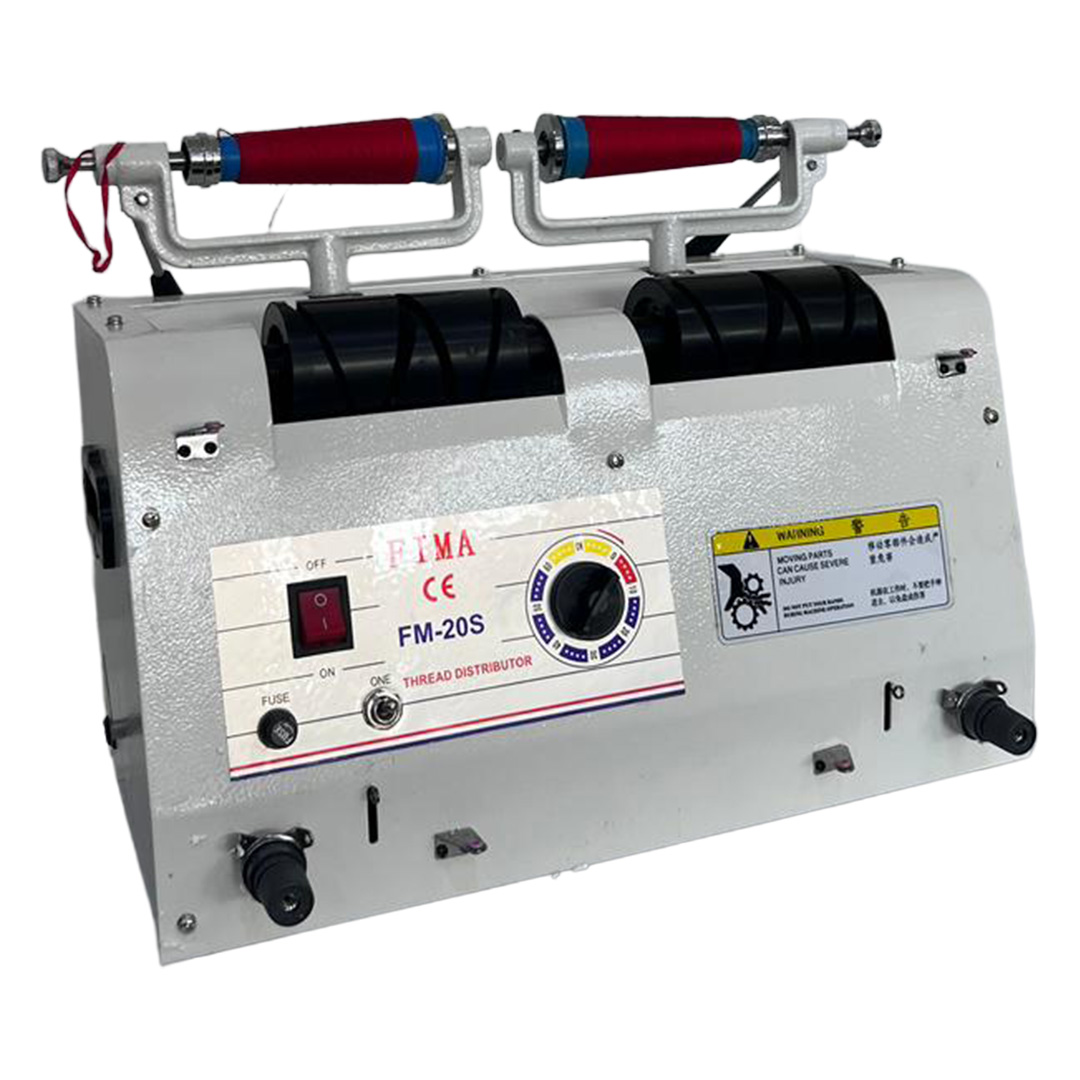

Thread Distributor/ Cone Winder
FM-20S
Winder Machine
- One action type bobbin stopper. *Apply to embroidering machine.
- Thread-winding volume is adjusted and controlled by a timer.
- Small size and light weight.
- The intermittent switch allows simple winding start setting.
- High-speed two bobbins winding assures the prompt convention of a large volume of thread to bobbins.
| Thread Distributor/ Cone Winder | |
|---|---|
| Model | WJ-20S |
| Voltage | 220V |
| Power | 120W |
| Gross weight | 16.8KG |

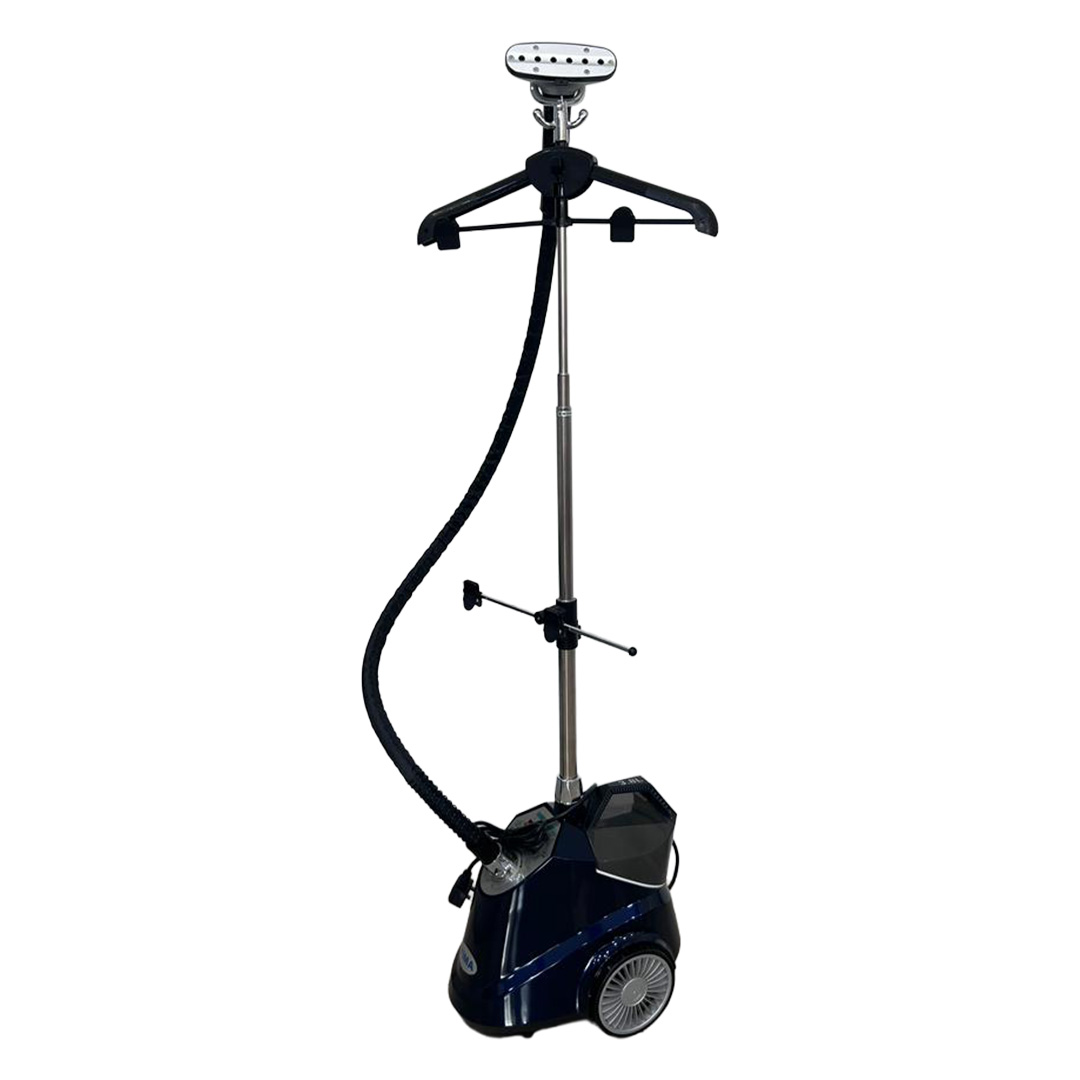

Garment Steamer
| SPECIFICATIONS | |
|---|---|
| Voltage (V) | 220-240V |
| Power | 2200W |
| Steam Generated Time(s) | 45s |
| Steam Flow (g/min) | 45g |
| Working Time | 84 Minutes |
| Water Capacity | 3.8L |
| Cable Length (M) | 2.2M |
| Hose Length (M) | 1.65M |
| Pole Material | Stainless Steel |
| Pole Adjustable Length (M) | 1.80M |
| Boiler Material | Titanium Aluminum Alloy |
| Ironing Head Material | PA6+PA66+Aluminum |
| Removeable Water Tank (Y/N) | Y |
| Steam Control | Three Power Level, Switch Control Panel |
| Alarm for Lack of Water and Shut Off | N |

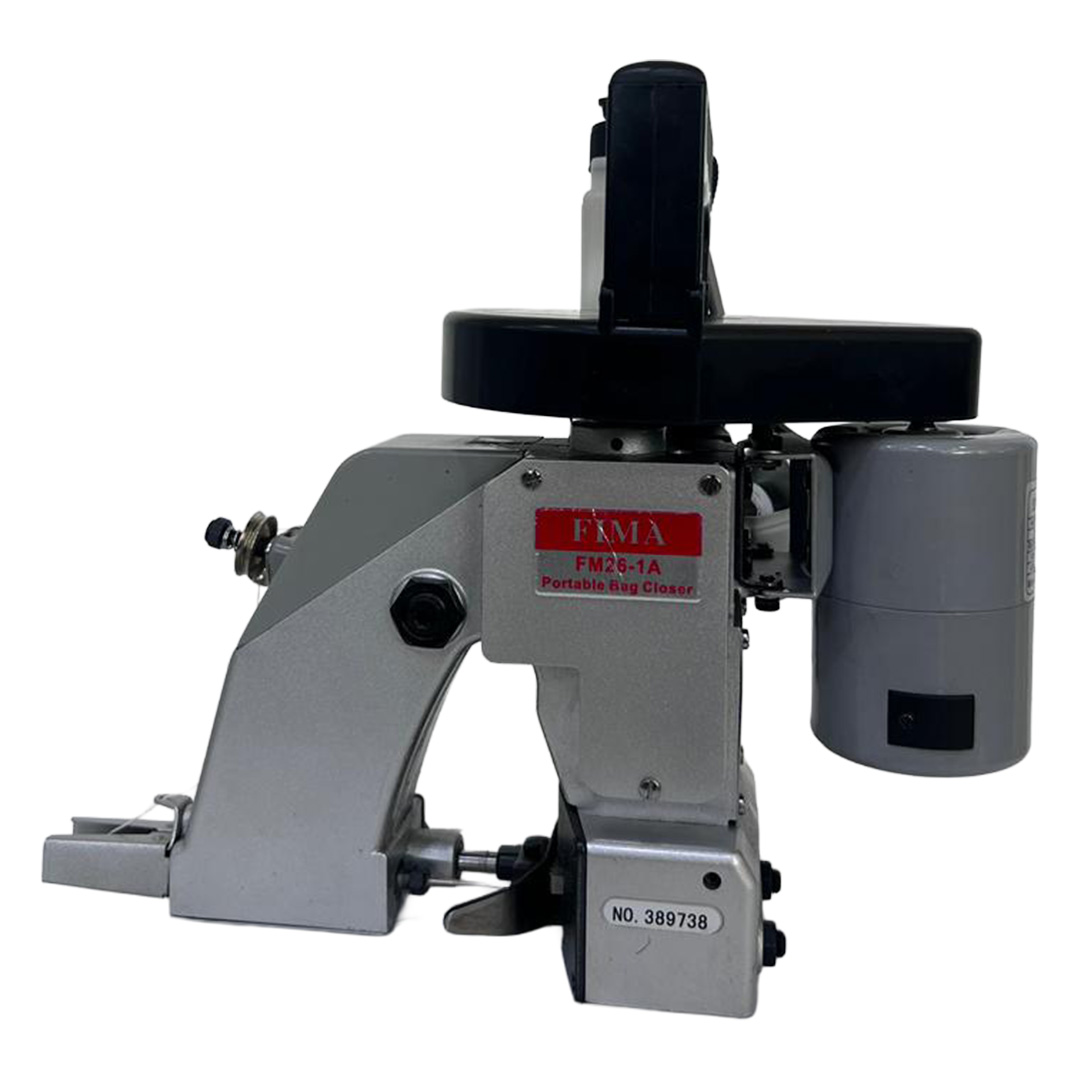

Portable Bag Closer
Single Thread Chain Stitch
Portable Bag Closer
High Speed New Type with Plastic Handle and Lubricator
Single Thread Chain Stitch
- High speed revolution.
- Safety plastic handle for insulation.
- Oil pump lubrication system.
- Oil lines direct lubricant to main moving elements.
| SPECIFICATIONS | |
|---|---|
| Needle | DNX1 #25 |
| Stitch Length (mm) | 6.5 |
| Maximum Sewing Speed (rpm) | 1250 |
| Net Weight (kg) | 5.8 |
| Gross Weight (kg) | 7 |

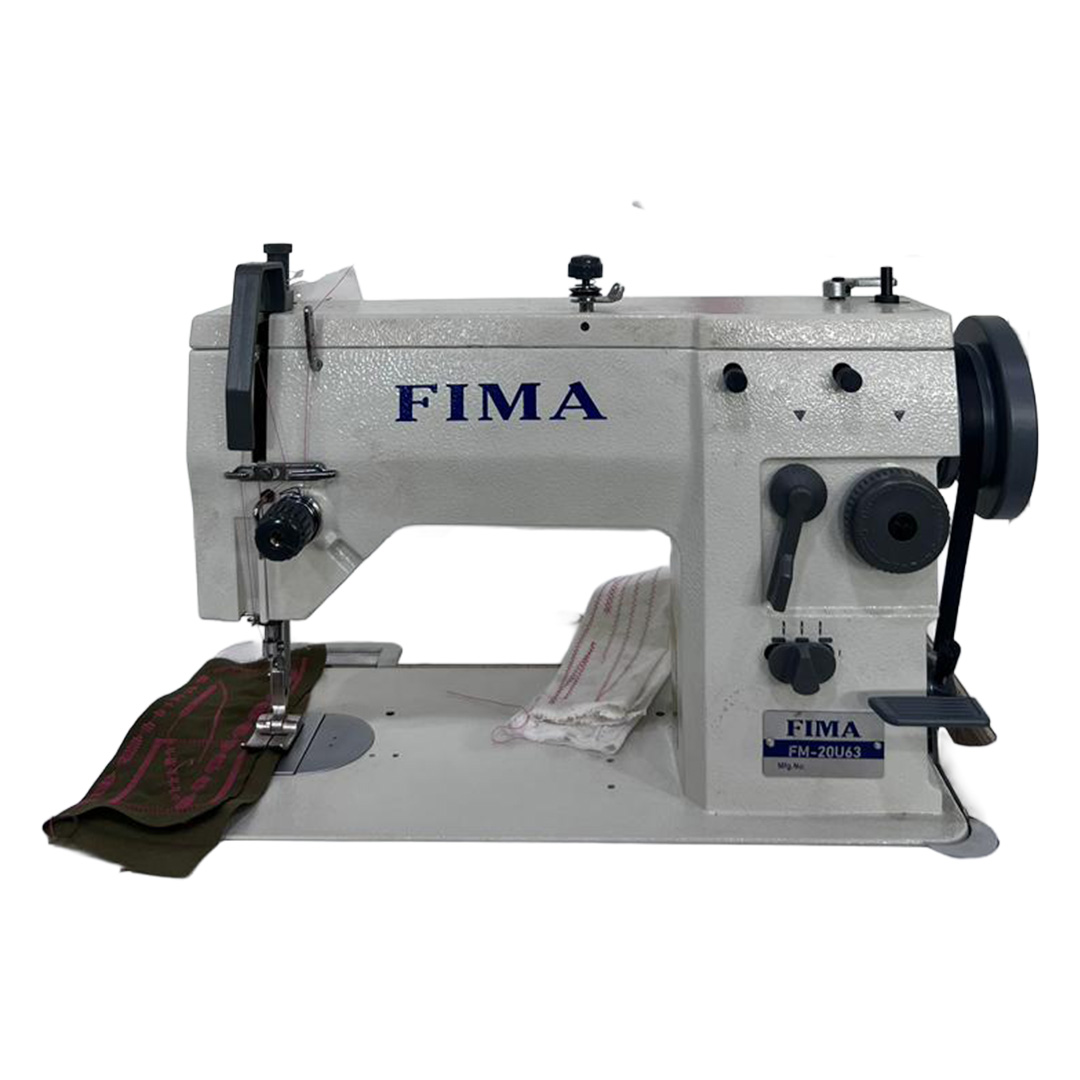

ZIGZAG SEWING MACHINE
20U53/63
ZigZag Sewing Machine
The machine is suitable for straight seaming, zigzag. embroidery, abutted, bar tacking, overedge seaming, zipper inserting seaming. Wrapped around seaming, pattern seaming on thin and medium fabrics. The needle position can be adjusted between the right and left to form beautiful decorative designs. machine adopts built-in thread winder, backward feeding medehanism.
ZIGZAG SEWING MACHINE
20U53/63
ZigZag Sewing Machine
The machine is suitable for straight seaming, zigzag. embroidery, abutted, bar tacking, overedge seaming, zipper inserting seaming. Wrapped around seaming, pattern seaming on thin and medium fabrics. The needle position can be adjusted between the right and left to form beautiful decorative designs. The machine adopts built-in thread winder, backward feeding medchanism.
Desk-Top Blindstich Machine
CM500
Desk-Top Blindstitch Machine
Electric Cloth Cutting Machine
FM105
Electric Cloth Cutting Machine
| SPECIFICATIONS | |
|---|---|
| Model | FM105 |
| Cutting Capacity (mm) | 90 |
| Speed | 2800 |
| Voltage | 220 |
Cutter Machine
FM 842S-M
Cutter Machine
| SPECIFICATIONS | |
|---|---|
| Needle | DPX #11 - #16 |
| Presser Foot Height (mm) | Manual 7 Knee 13 |
| Stitch Length (mm) | 5 |
| Needle Bar Stroke (mm) | 33.4 |
| Maximum Sewing Speed (spm) | 3000 |
H.S.D.N Chainstitch
FM 3800
High-Speed Double-Needle Chainstitch
This machine adopts link-typed feeding mechanism, needle bar thread taking up, and looper thread catching to produce two lines of chainstitch, which is firm and elastic, suitable for lapping seam and decorative seam on garment, underwear, bedding articles and leather goods. There are five different gauges available for selection.
Hand Stitch Machine Series
FM 8800
Hand Stitch Machine Series
It is applicable to business suit, sportswear, overcoat, trousers, shirt, etc. with reasonable framework, steady running, little sound, beautiful appearing and stitch. It is easy to operate, just the perfect machine for garment.

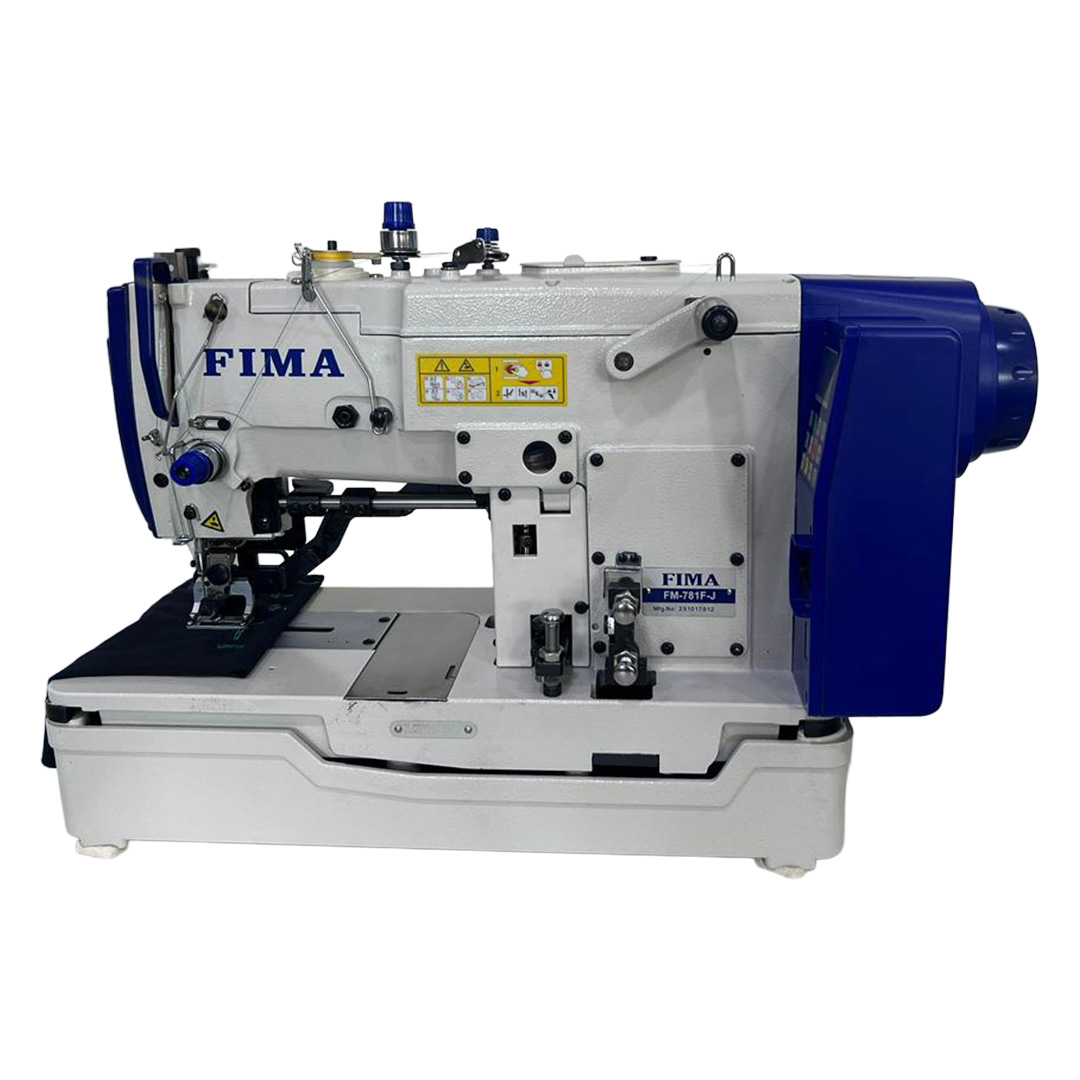

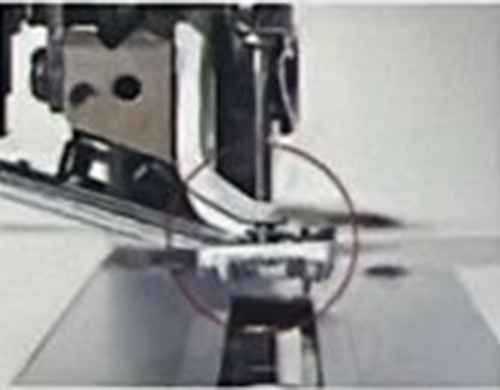

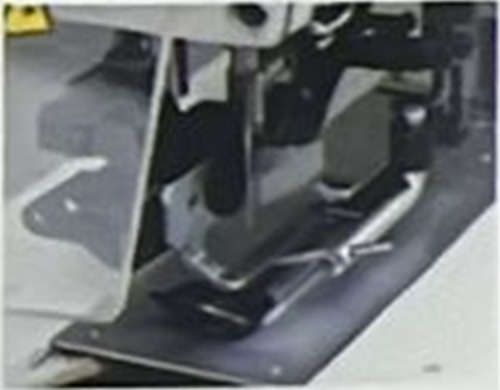

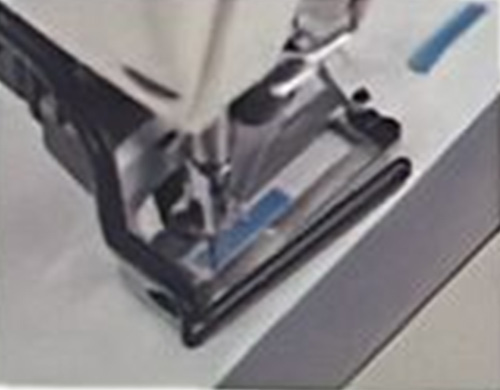

High-speed computerized straight button honling sewing machine
FM781F-J
High-speed computerized straight button honling sewing machine
Adopted with direct-drive servo motor, the machine has automatic presser-foot lifting function. This machine applies to universal buttonholing on all light to medium-heavy knitting materials, cotton fabrics and man-made fiber, able to sew flat stitch and triangle stitch with beautiful and solid seam. It is with high sewing speed, and its buttonholing size and stitch number are adjustable as well as buttonholing positioning can be easily adjusted. It adopts automatic lubrication system and automatic thread trimming mechanism. This further enhances ease of operation.
| Model | Speed | Needle | Feature 1 | Feature 2 | Feature 3 | Stitch Length | Buttonhole Length | Button Size | Count | Weight | Dimensions |
|---|---|---|---|---|---|---|---|---|---|---|---|
| FM-781 | 3600 | DPX5 11-14# | * | * | - | 6.4-19.1mm | 2.5-4mm | 1/4" - 3/4" | 12 | 69/58 | 745x340x930 |
| FM-782K | 3600 | DPX5 11-14# | * | * | - | 6.4-19.1mm | 2.5-4mm | 0.5/1.3 | 12 | 69/58 | 745x340x930 |
| FM-783NV | 3600 | DPX5 11-14# | * | * | - | 6.4-19.1mm | 2.5-4mm | 0.5/1.3 | 12 | 69/58 | 745x340x930 |
Direct drive single-thread chainstitch button sewing machine
FM 1377D
Direct drive single-thread chainstitch button sewing machine

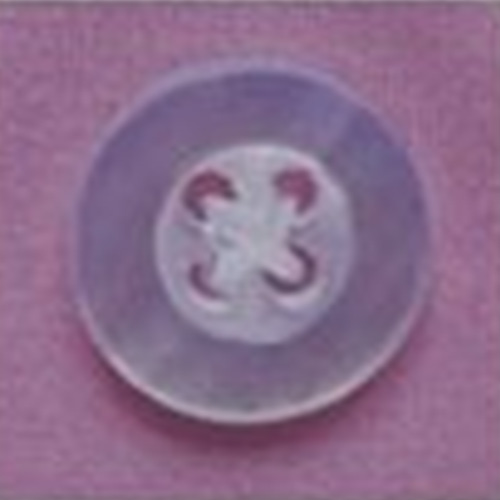

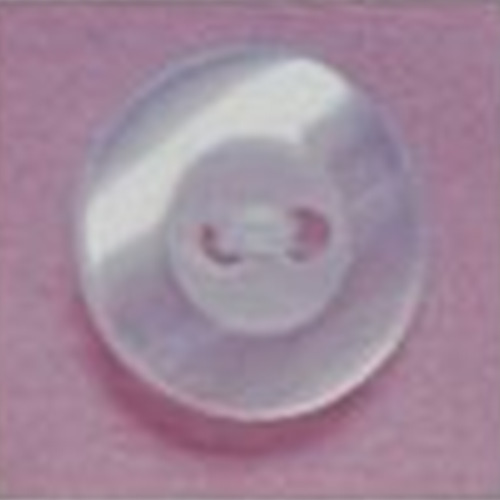

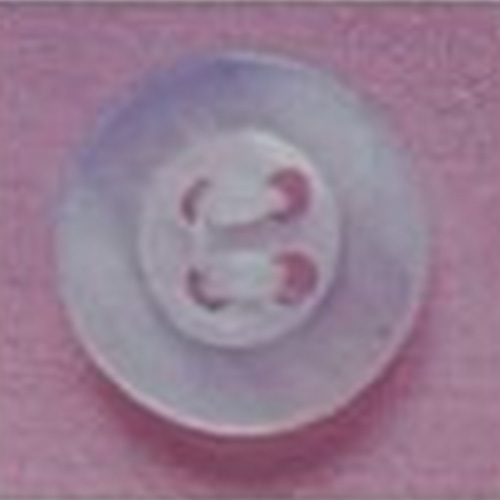

Suitable to attach flat two holes, four holes, or shank buttons onto all kinds of shirts, overcoats, work uniforms etc. Shanked button and others are also can be sewn by equipping accessories. Its suitable for light and medium weight materials. Single pedal starting. Automatic presser lifting. Automatic thread trimmer, attaching firmly and reliably, convenient maintenance.
| Model | Speed | Needle | Range | Thickness | Length | Feature | Weight | Dimensions |
|---|---|---|---|---|---|---|---|---|
| FM-1377D | 1500 | 20# Tqx7 | 10-28 | 2.5-6.5 | 14 | * | 27/29 | 505x330x415 |
| FM-373D | 1300 | 14-16# TQx1 | 9-27 | 2.5-6.5 | 14 | * | 27/29 | 505x330x415 |

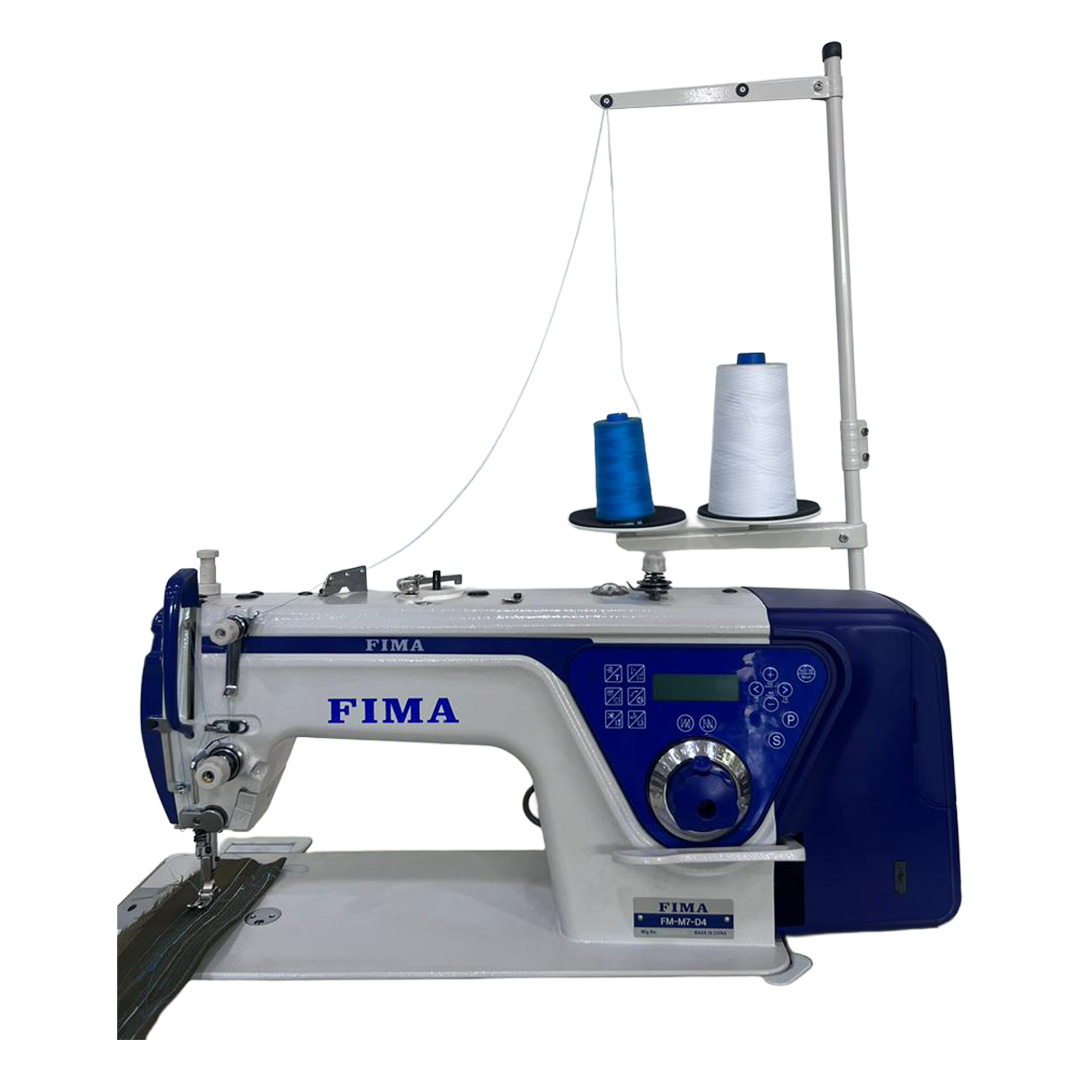

Computerized lockstitch sewing machine
FM M7 D4
Computerized lockstitch sewing machine
Applicable to common thin material, medium heavy such as knit wear, shirt, suit,leisure wear, jeans.
- It is a perfect integration of mechatronic lockstitch sewing machine which has theinside electronic control box and the built-in control pannel . it has a number offeatures ,can be easily assembled and conveniently operated.
- Newly designed patterned appearance, extra width space convenient for the storeof sewing materials, easy for operation.
- Self-lubricate design of take-up-lever mechanism to increase the service life.
- Adopt inside direct drive servo-motor system to improve the braking precisionwhen quick start. Power saving up to 60% to reduce the cost.
- Automatic trimming, automatic needle positioning, automatic needle counting,automatic reverse sewing counting, automatic thread wiping, etc available to ensurethe smart sewing. More humanization, more intellectualization apply to all kinds of complex and highly difficult process, increase the efficiency.
| Model | Needle | Range | Thickness | Feature 1 | Feature 2 | Feature 3 | Feature 4 | Speed | Weight | Dimensions |
|---|---|---|---|---|---|---|---|---|---|---|
| FM-M7-D4 | DBX1 | 0-5 | 6-12 | * | * | * | * | 5000 | 46/48 | 630x290x555 |

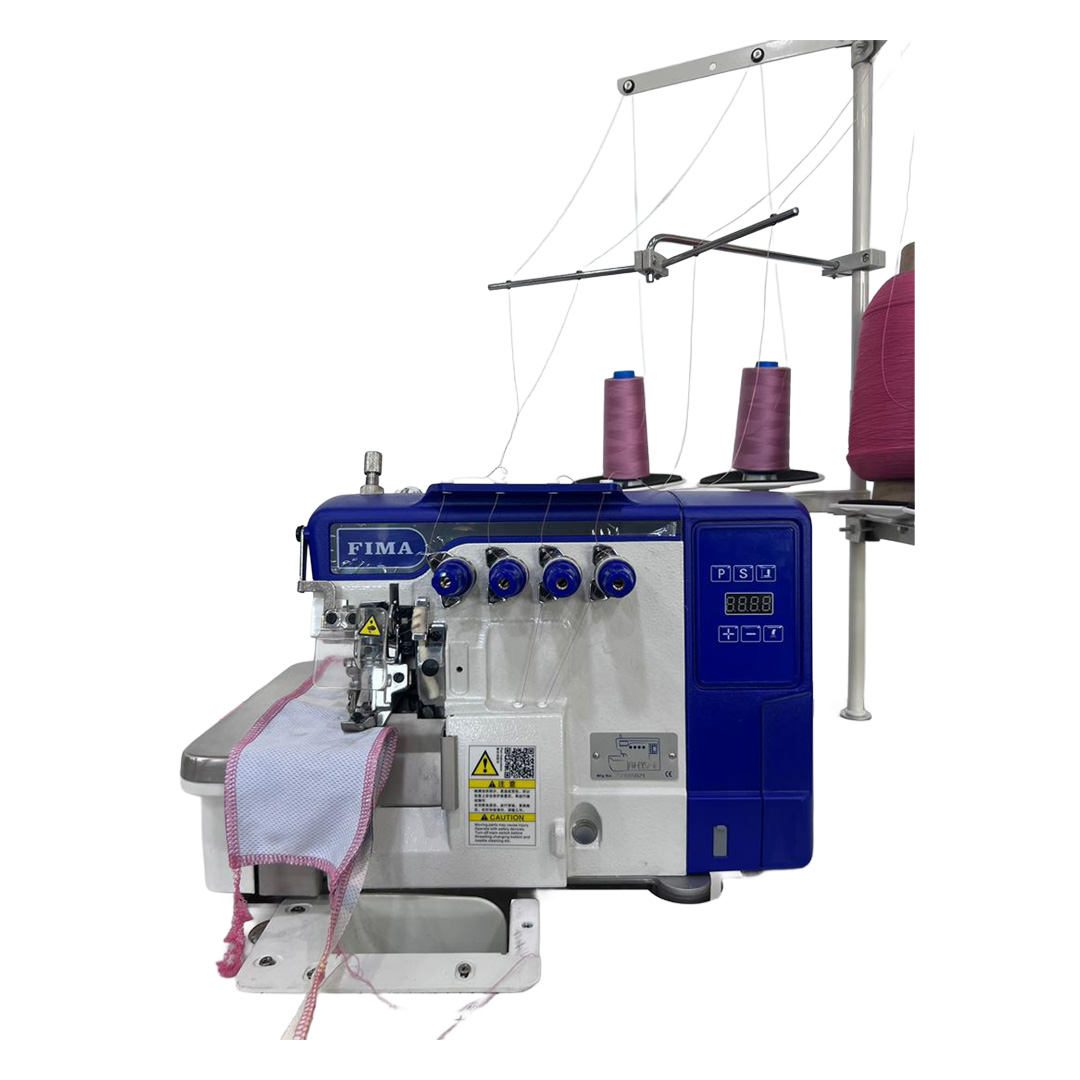

Direct drive overlock machine
FM EX52 4D
Direct drive overlock machine
Adopting the integrated design of electromechanical direct drive, users can restore the parameters set by themselves or the factory parameters according to their needs, which is more userfriendly and does not need to worry about pressing the wrong button. It is widely used in lap seams, decorative seams and various stitches for v arious fabrics such as clothing, underwear, bedding, thin packaging and leather products. It can be easily adjusted to sew a good seam.
| Model | Needle | Value 1 | Value 2 | Value 3 | Range 1 | Value 4 | Range 2 | Speed | Dimensions | Weight |
|---|---|---|---|---|---|---|---|---|---|---|
| FM-EX52-4D | DCX27 14# | 2 | 5.5 | 3 | 0.7-1.7 | 4 | 0-7.2 | 6000 | 470x365x500 | 28.5/37 |

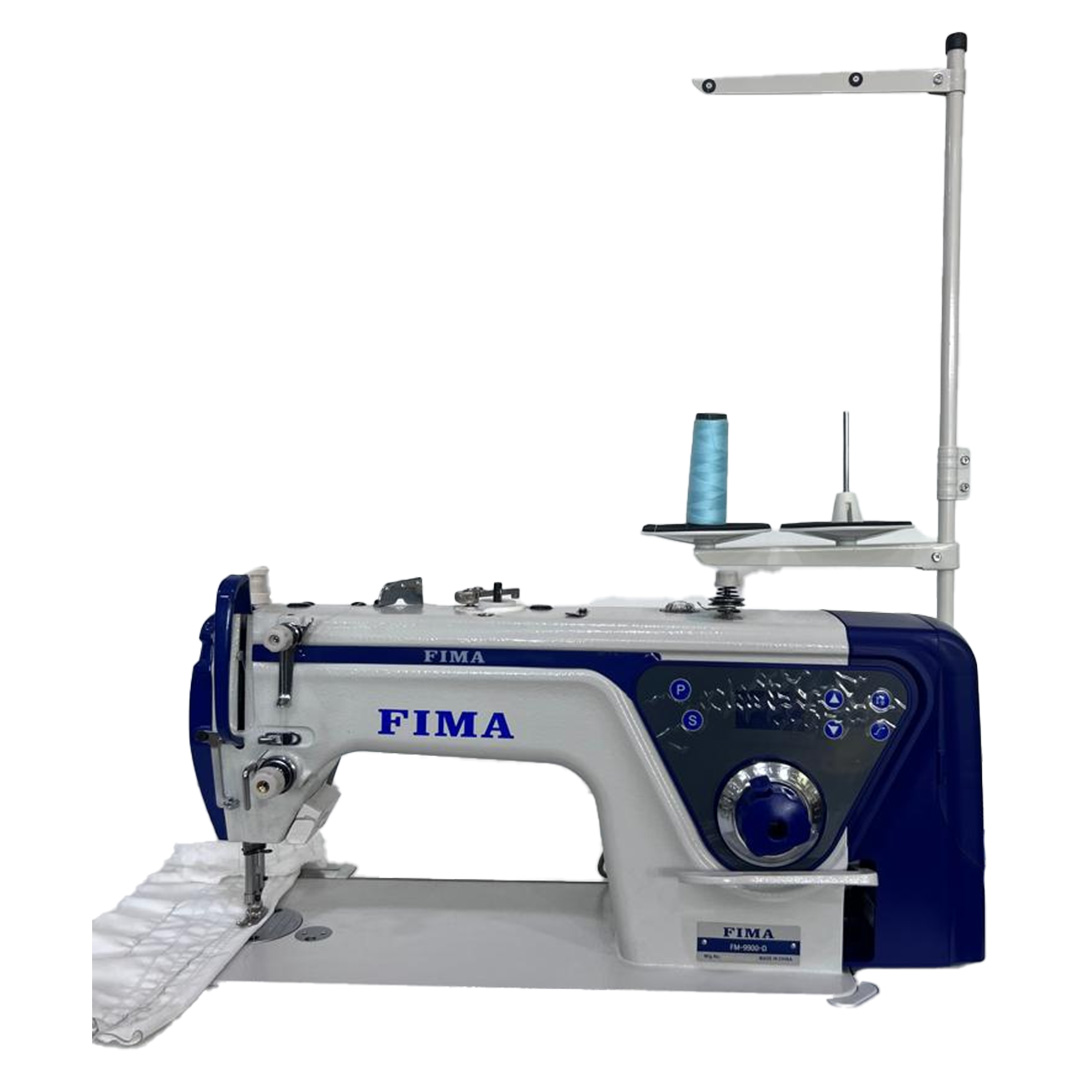

Direct Drive Lockstitch Sewing Machine
FM 9900 D
Direct Drive Lockstitch Sewing Machine
New generation of smart computer lockstitch sewing machine, equipped with directdrive servo motor, it can save 70% electricity. Lower noise, without radiation. The machine is applicable for different materials, and with its advanced noisedecreasing device, it remains its reliability and durability at the high speed of 5000r/min, improves the efficiency.
| Model | Needle | Stitch Length (mm) | Presser Foot Lift (mm) | Auto Trimmer | L (Light) | M (Medium) | H (Heavy) | Max Speed (s.p.m) | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| FM-9900-D | DBX1 9#-18# | 0-5 | 5.5-15 | ★ | ★ | ★ | — | 5000 | 290X230X560 | 29.5/36.6 |

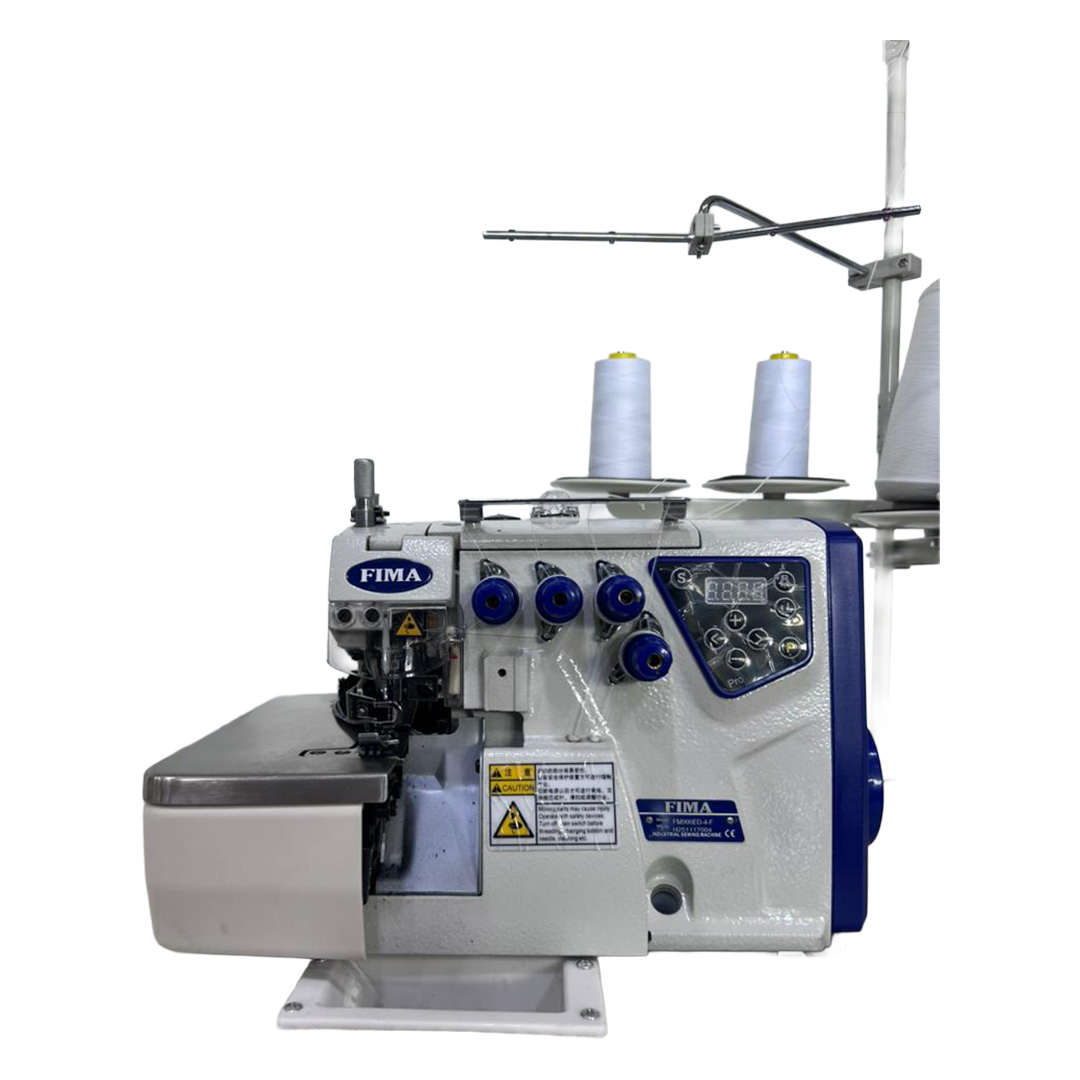

Direct Drive Super High Speed Overlock Sewing Machine
FM-900ED-4-F
Direct Drive Super High Speed Overlock Sewing Machine
- New fashion look
- All-in-one electronic control, more stable and light
- Thread-passing optimization, beautiful stitches
- Needle bar sealed oil return for clean sewing
- Simple operation, quick response
| Model | Type | Needle | Needles | Threads | Stitch Type | Stitch Length | Differential Feed | Presser Foot Height | Speed | Dimensions | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|
| FM-900ED-4-F-04 | Basic three thread | DC×27 11# | 1 | 3 | — | 4.0 | 3.8 | 0.7-2 | 5.5 | 4500 | 48×36×55 / 33/41 |
| FM-900ED-4-F-24 | Basic four thread | DC×27 11# | 2 | 4 | 2 | 4.0 | 4.6 | 0.7-2 | 5.5 | 4500 | 48×36×55 / 33/41 |
| FM-900ED-4-F-35 | Basic five thread | DC×27 11# | 2 | 5 | 3 | 4.0 | 5.0 | 0.7-2 | 5.5 | 4500 | 48×36×55 / 33/41 |
| FM-900ED-4-F-55 | Thick five thread | DC×27 14# | 2 | 5 | 5 | 6.0 | 7.0 | 0.7-2 | 6.0 | 4500 | 48×36×55 / 33/41 |
| FM-900ED-4-F-24BK | Four thread, back reverse | DC×27 11# | 2 | 4 | 2 | 4.0 | 4.6 | 0.7-2 | 5.5 | 4500 | 48×36×55 / 33/41 |
High-speed Cylinder-bed Interlock Sewing Machine
FM 600D 01CB
High-speed Cylinder-bed Interlock Sewing Machine
Applicable to knit wear, under wear T-shirt, for light and medium materials. Characteristics:
- This machine is basic model of high-speed cylinder-bed interlock machine, can be equipped different accessories to suit for different work.
- New type needle bar oil-back system, no possibility of oil leakage.
- Needle bar transmission structure, adopt all-sealed design, more safe and easier to keep clean.
- Complete automatic supply system and oil-filter device, ensure the max sewing speed to be 6000r.p.m.
- Some key parts are imported from Japan, which enhance the wear-resistance of the machine.
- Automatic device including: back-hanging mini servo motor, pneumatic and electronic up/down automatic trimmer device and foot lifter device. Easy to operate, can improve the quality and efficiency of sewing work.
| Model | Motor | Needle | Looper | Gauge | Stitch Length | Differential | Presser Foot | Speed (rpm) | Dimension (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| FM-600-01CB | UY128GAS 11# | 2(3) | 4(5) | 4.4 | 4.8 5.6 6.4 (2.4 3.2 4.4 4.8) | 0.5:1.3 | 6.3/5 | 6000 | 610x400x615 | 50/53 |
| FM-600-02BB | UY128GAS 9-14# | 3(2) | 5(4) | 4.4 | 4.8 5.6 6.4 (2.4 3.2 4.4 4.8) | 0.5:1.3 | 5 | 6000 | 610x400x615 | 50/53 |
| FM-600-01CB-RP | UY128GAS 11# | 2(3) | 4(5) | 4.4 | 4.8 5.6 6.4 (2.4 3.2 4.4 4.8) | 0.5:1.3 | 6.3/5 | 6000 | 610x400x615 | 50/53 |
| FM-600-33AC/RP/UT | UY128GAS 11# | 3 | 5 | 4.4 | 5.6 | 0.5:1.3 | 5.1 | 6000 | 610x400x615 | 50/53 |
| FM-600-35AB/UT | UY128GAS 11# | 3(2) | 5(4) | 4.4 | 4.8 5.6 6.4 (3.2 4.0) | 0.5:1.3 | 6.3/5 | 6000 | 610x400x615 | 50/53 |

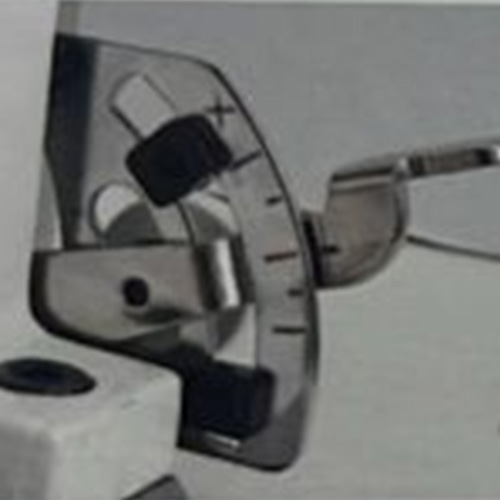

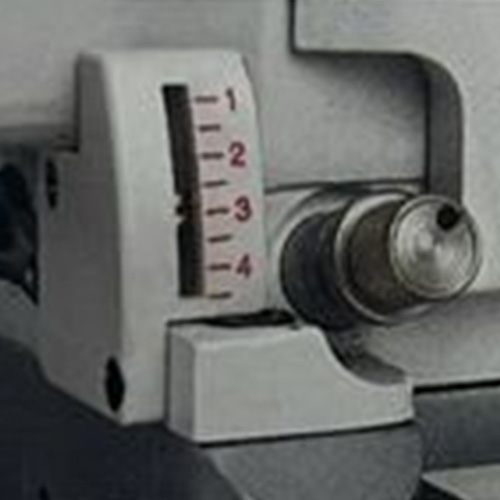

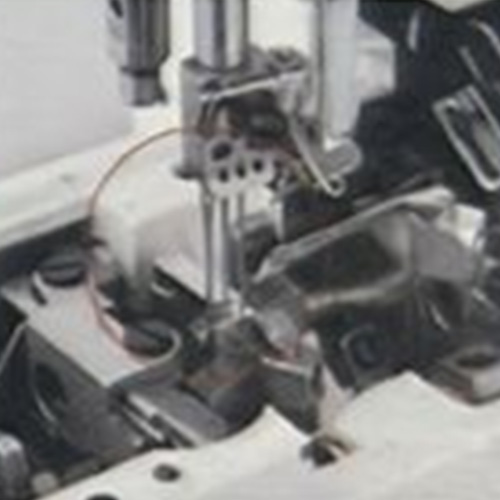

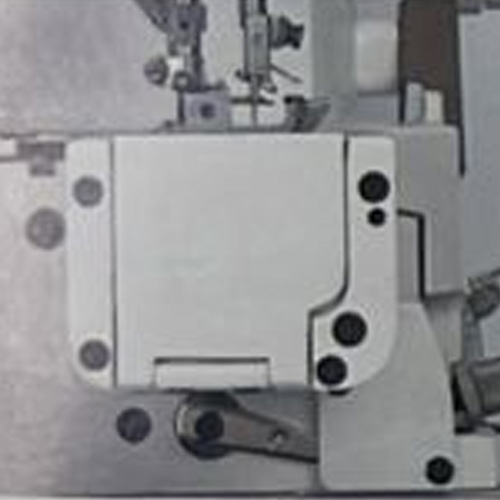

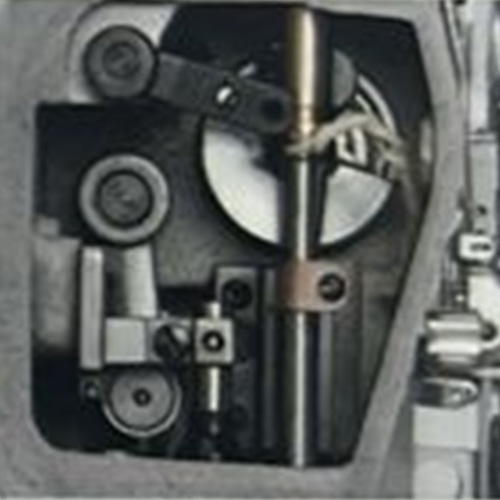

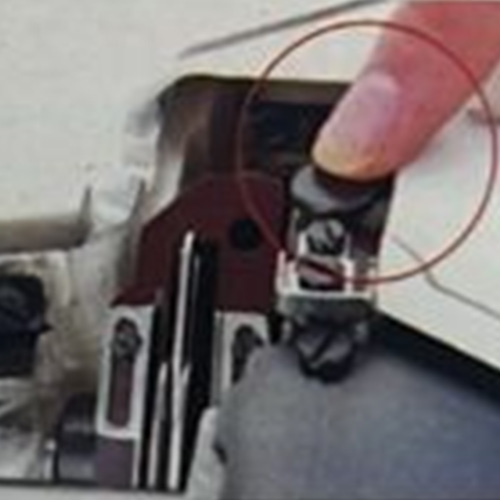

Direct Drive Cylinder-bed High-speed Interlock Sewing Machine With Auto Trimmer
FM600-01CB/UT
Direct Drive Cylinder-bed High-speed Interlock Sewing Machine With Auto Trimmer
Applicable to knit wear, under wear T-shirt, for light and medium materials. Characteristics:
- This machine is basic model of high-speed cylinder-bed interlock machine, can be equipped different accessories to suit for different work.
- New type needle bar oil-back system, no possibility of oil leakage.
- Needle bar transmission structure, adopt all-sealed design, more safe and easier to keep clean.
- Complete automatic supply system and oil-filter device, ensure the max sewing speed to be 6000r.p.m.
- Some key parts are imported from Japan, which enhance the wear-resistance of the machine.
- Automatic device including: back-hanging mini servo motor, pneumatic and electronic up/down automatic trimmer device and foot lifter device. Easy to operate, can improve the quality and efficiency of sewing work.
| Model | Motor | Needle | Looper | Gauge | Stitch Length | Differential | Presser Foot | Speed (rpm) | Dimension (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| FM-600-01CB | UY128GAS 11# | 2(3) | 4(5) | 4.4 | 4.8 5.6 6.4 (2.4 3.2 4.4 4.8) | 0.5:1.3 | 6.3/5 | 6000 | 610x400x615 | 50/53 |
| FM-600-02BB | UY128GAS 9-14# | 3(2) | 5(4) | 4.4 | 4.8 5.6 6.4 (2.4 3.2 4.4 4.8) | 0.5:1.3 | 5 | 6000 | 610x400x615 | 50/53 |
| FM-600-01CB-RP | UY128GAS 11# | 2(3) | 4(5) | 4.4 | 4.8 5.6 6.4 (2.4 3.2 4.4 4.8) | 0.5:1.3 | 6.3/5 | 6000 | 610x400x615 | 50/53 |
| FM-600-33AC/RP/UT | UY128GAS 11# | 3 | 5 | 4.4 | 5.6 | 0.5:1.3 | 5.1 | 6000 | 610x400x615 | 50/53 |
| FM-600-35AB/UT | UY128GAS 11# | 3(2) | 5(4) | 4.4 | 4.8 5.6 6.4 (3.2 4.0) | 0.5:1.3 | 6.3/5 | 6000 | 610x400x615 | 50/53 |
