FEATURES:

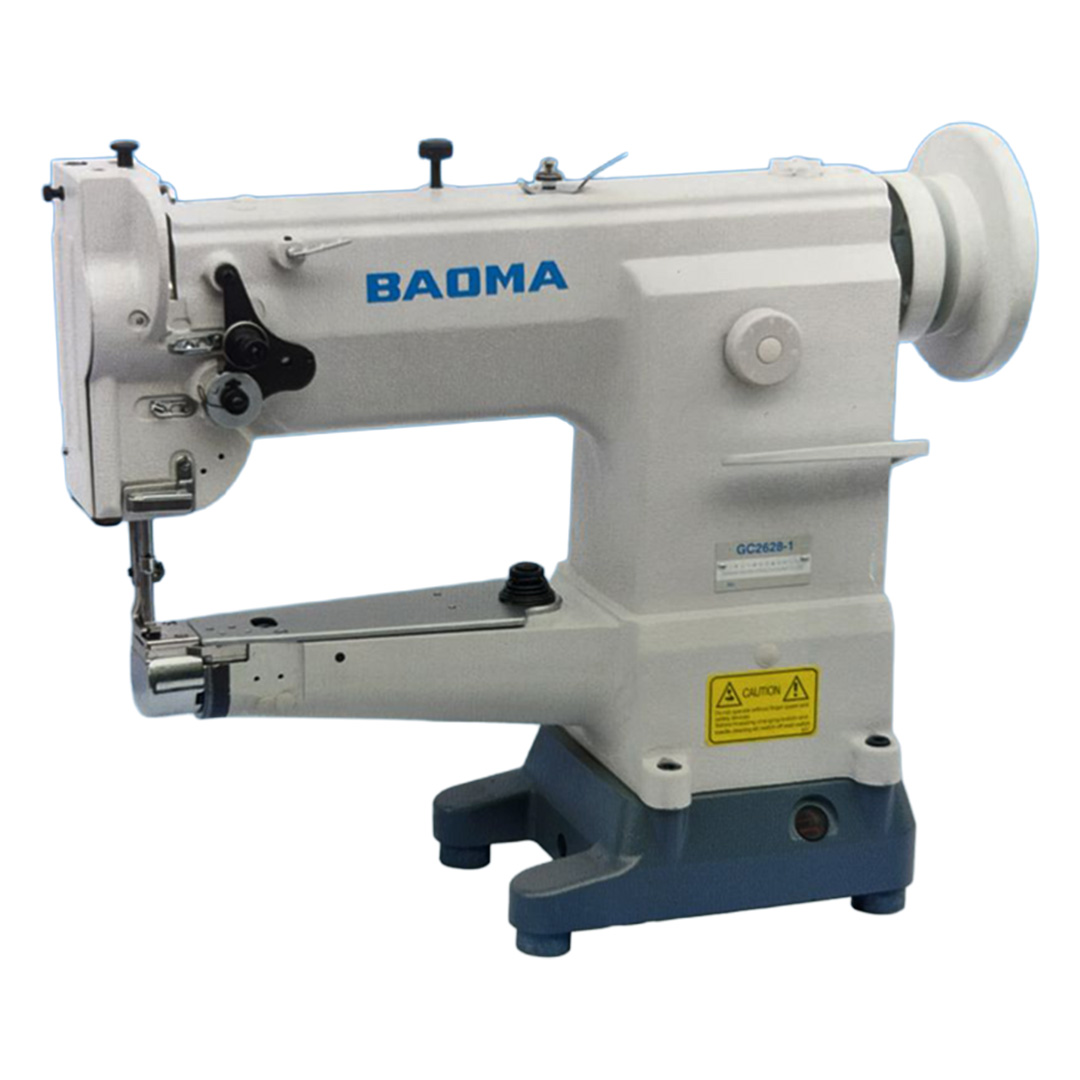

MODEL GC2628 series is a single needle compound feed lockstitch sewing machine. It adopts sliding bar thread take-up, the arrn shaft and hook
shaft transfer the drive by high-precise spiral bevel gear. And it also has automatic lubrication system, therefore the noises and vibrations are
minimized signifmnüy. As compound feed, the slippage beween material layers can be avoided, with beauty and uniform stitches.
Model GC2628 is horizontal movement of drop feed, suitable used for binding stitching.
Model GC2628-I & GC2628-2 is elliptical movement of drop feed, suitable used for normal stitching.
| SPECIFICATIONS |
|
|
|
|
| Model |
GC2628 |
GC2628-1 |
GC2628-LG |
GC2628-2 |
| Sewing Speed (Max) |
2000s.p.m. |
2000s.p.m. |
2000s.p.m. |
2000s.p.m. |
| Stitch Length
| 0-5mm |
0-5mm |
0-6mm |
0-6mm |
| Needle Bar Stroke |
33.2mm |
33.2mm |
33.2mm |
33.2mm |
| Presser Foot Lift |
By Hand : 6mm By Knee : 15mm |
By Hand : 6mm By Knee : 15mm |
By Hand : 6mm By Knee : 15mm |
By Hand : 6mm By Knee : 15mm |
| Needle |
DP X 17 18*-24* |
DP X 17 18*-24* |
DP X 17 18*-24* |
DP X 17 18*-24* |
| Rotating Hook |
Automatically Lubricated Hook |
Automatically Lubricated Hook |
Automatically Lubricated Big Hook |
Automatically Lubricated Big Hook |
