EX SERIES
A Masterpiece of Pegasus Technology
Top of the line machines to produce beautiful stitches, with reliable mechanism, technology that achieves high speed and durability, plus ease of operation and maintenance. Offers full line of subclasses that provide high quality finishes in various operations. A wide variety of labor saving devices help increase productivity.
| EX Specifications in common | |
|---|---|
| Max. speed | 8,500 rpm |
| Main feed dog's movement amount | 0.6mm - 5.2mm |
| Overedge width | 1.5mm - 8mm |
| Presser foot lift | Up to 8mm |
| Differential feed ratio | 1 : 0.4 - 1 : 3.8 |
*Note : The details of the specs. very by subclass.
EXT SERIES
Makes them to highest quality
Top and bottom feed dogs on the variable top feed machines provide for positive and accurate fabric feed. This feature prevents twisting and plyshifting of the fabric being sewn, achieving high quality production. These machines neatly perform shirring, piping and blindstitch hemming, operations that are difficult with bottom feeding alone, while preventing puckering. PegasusÅfvariable top feed machines ensure uniform quality during a wide variety of sewing operations.
| EXT Specifications in common | |
|---|---|
| Max. speed | 7,000 rpm |
| Stitch Length | Max.5.0mm |
| Overedge width | 3mm - 8mm |
| Presser foot lift | Up to 8mm |
| Differential feed ratio | 0.7mm - 3.8mm |
| Top feed dog movement amount | 1mm - 8mm |
*Note : The details of the specs. very by subclass.
M900 SERIES
User Friendly
- Compact Apperance
- Exeptional ease of operation
- High power (550W)
Patented Design
- Completely enclosed type motor
(Dust Protection and Heat Prevention) - No coupling
(Direct Transmission and Easy Setup)
Original Motor
- Designed and manufactured
- Certified by CE as all-in-one type direct drive motor
| M932-38 | M932-70 | M932-86 | M932-355 | |
|---|---|---|---|---|
| Seam | 1 | 2 | 1 | 2 | 1 | 2 | 3 |
| Application | Plain seaming | Plain seaming | Plain seaming | 3-needle versatille |
| Fabric weight | Medium Extra Heavy | Medium Extra Heavy | Extra Heavy | Medium |
| Subclass | M932-38 | M932-70 | M932-86 | M932-355 |
| No.of needles | 2 | 2 | 2 | 3 |
| No.of threads | 5 | 5 | 5 | 6 |
| Needle space (mm) | 3 | 5 | 5 | 3+2 |
| Overedger width (mm) | 4 | 5 | 6 | 4 |
| Max.stitch length (mm) | 3.7 | 3.7 | 5.3 | 3.7 |
| Diff feed ratio | 0.7-1.7 | 0.7-1.7 | 0.6-1.3 | 0.7-1.7 |
| Presser foot lift (mm) | 5.5 | 5.5 | 5.5 | 5.5 |
| Max.Speed (ti/min) | 7,000 | 7,000 | 5,500 | 6,000 |
| Needles | DC x 47 #14(90) |
DC x 47 #14(90) |
DC x 47 #21(130) |
DC x 47 #11(75) |
Accessories:
LC : Pneumatic link collector
PL : Presser foot lift
SC : Needle thread releasing
*standard on KHBC only
| M932-38 | M932-70 | M932-86 | M932-355 | |
|---|---|---|---|---|
| Seam | 4 | 5 | 4 | 5 | 4 | 5 | 4 | 5 |
| Application | Plain seaming | Plain seaming | Plain seaming | Plain seaming |
| Fabric weight | Medium | Medium | Light to Medium | Light to Medium |
| Subclass | M932-38 | M932-70 | M932-86 | M932-355 |
| No.of needles | 2 | 2 | 2 | 2 |
| No.of threads | 4 | 4 | 4 | 4 |
| Needle space (mm) | 2 | 2 | 2 | 2 |
| Overedger width (mm) | 4 (5) | 4 (5) (7) | 4 (5) | 4 (5) |
| Max.stitch length (mm) | 3.7 | 3.7 | 3.7 | 3.7 |
| Diff feed ratio | 0.7-1.7 | 0.7-1.7 | 0.7-1.7 | 0.7-1.7 |
| Presser foot lift (mm) | 5.5 | 5.5 | 5.5 | 5.5 |
| Max.Speed (ti/min) | 6,000 | 6,000 | 7,000 | 6,000 |
| Needles | DC x 27 #9(65) |
DC x 27 #9(65) |
DC x 27 #9(65) |
DC x 27 #9(65) |
Accessories:
LC : Pneumatic link collector
PL : Presser foot lift
SC : Needle thread releasing
*standard on KHBC only
W500PC SERIES
Beautiful Seams for Beautiful Fashion

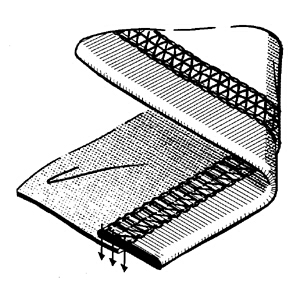

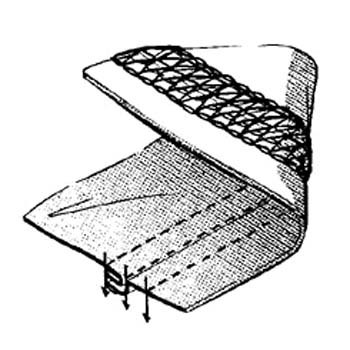

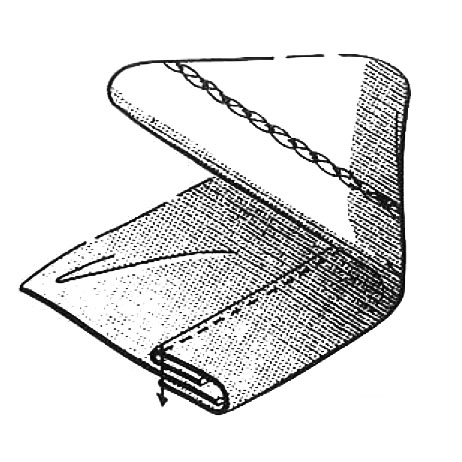

| Subclasses | Use | Maximum Speed | Seam |
|---|---|---|---|
| W562PC-01G | Plain Seaming (Covering) (Hemming) | 6,000 sti/min |
      |
| W562PC-01D | Plain seaming | 4,200 sti/min |
  |
| W662PC-35B | Hemming | 5,000 sti/min |
|
| M392/KH8B,KH8C/DD3A : Overedger / Attaching tape | ||||
|---|---|---|---|---|
| Seam | 4 | 5 | 4 | 5 | 4 | 5 | 4 | 5 |
| Application | Plain seaming | Plain seaming | Plain seaming | Plain seaming |
| Fabric weight | Medium | Medium | Light to Medium | Light to Medium |
| Subclass | M932-38 | M932-70 | M932-86 | M932-355 |
| No.of needles | 2 | 2 | 2 | 2 |
| No.of threads | 4 | 4 | 4 | 4 |
| Needle space (mm) | 2 | 2 | 2 | 2 |
| Overedger width (mm) | 4 (5) | 4 (5) (7) | 4 (5) | 4 (5) |
| Max.stitch length (mm) | 3.7 | 3.7 | 3.7 | 3.7 |
| Diff feed ratio | 0.7-1.7 | 0.7-1.7 | 0.7-1.7 | 0.7-1.7 |
| Presser foot lift (mm) | 5.5 | 5.5 | 5.5 | 5.5 |
| Max.Speed (ti/min) | 6,000 | 6,000 | 7,000 | 6,000 |
| Needles | DC x 27 #9(65) |
DC x 27 #9(65) |
DC x 27 #9(65) |
DC x 27 #9(65) |
Accessories:
LC : Pneumatic link collector
PL : Presser foot lift
SC : Needle thread releasing
*standard on KHBC only
W600PC SERIES
Oil barrier type, cylinder bed, interlock stitch machines

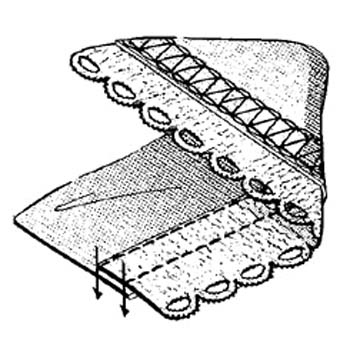

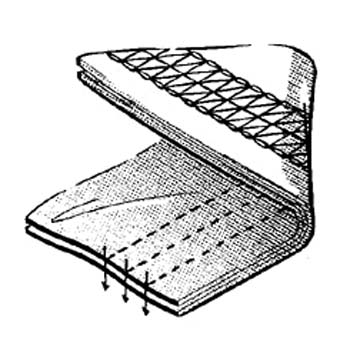

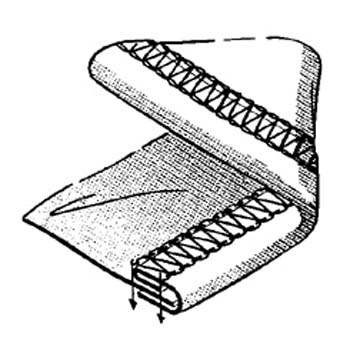

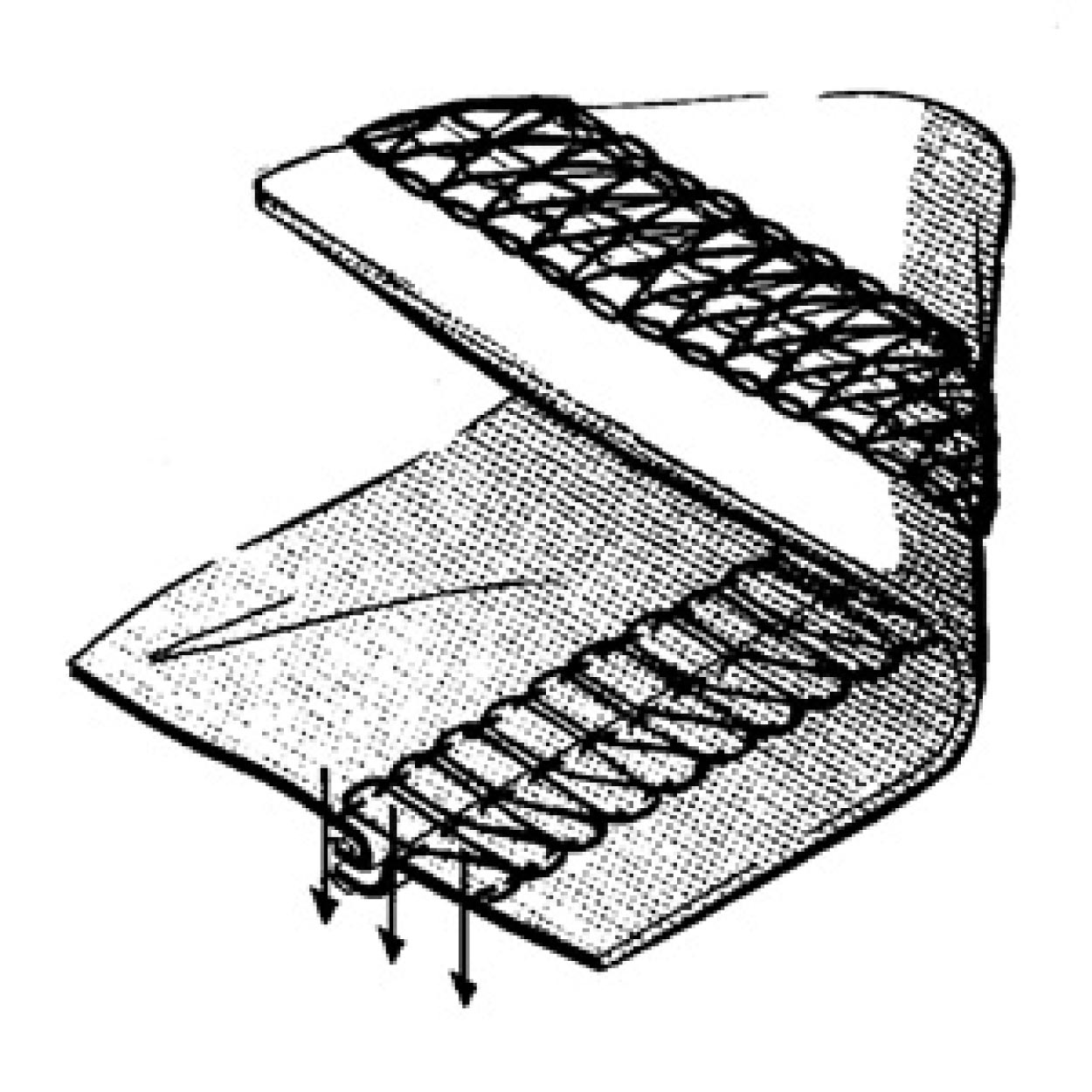

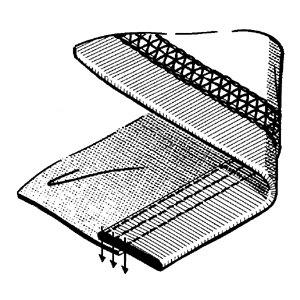

| Subclasses | Use | Maximum Speed | Seam |
|---|---|---|---|
| W664P-01G | Plain Seaming (Covering) (Hemming) | 5,500 sti/min |
|
| W664P-01H | Plain Seaming (Covering) (Hemming) | 5,500 sti/min |
|
| W664P-02G | Binding tape | 6,000 (5,000 with MD) sti/min |
  |
| W664P-03F | Covering | 6,000 sti/min |
|
| W664P-03G | Covering | 6,000 sti/min |
  |
| W664P-03K | Covering | 6,000 sti/min |
|
| W664P-03L | Covering | 6,000 sti/min |
|
| W664P-05B | Attaching elastic lace | 5,500 (5,000 with MD) sti/min |
  |
| W664P-08A | Hemming | 6,000 sti/min |
|
| W664P-08B | Hemming | 6,000 sti/min |
|
| W664P-08D | Hemming | 6,000 sti/min |
|
| W664P-08E | Hemming | 6,000 sti/min |
|
| W664P-08N | Hemming | 6,000 sti/min |
|
| W664P-35A | Hemming | 5,000 sti/min |
|
| W664P-35B | Hemming | 5,000 sti/min |
|
| W664P-35N | Hemming | 5,000 sti/min |
|
| W664P-71A | Hemming | 6,000 sti/min |
|
| W624P-12A | Attaching tape | 6,000 sti/min |
 |
| W664P-30A | Inserting elastic rings into waists of tubular goods | 5,000 sti/min |
 |
| W664P-34A | Inserting elastic rings into waists of tubular goods | 5,000 sti/min |
|
| W664P-32D | Attaching knitted elastic ring to tubular goods | 5,000 sti/min |
|
| W664P-32E | Attaching knitted elastic ring to tubular goods | 5,000 sti/min |
|
| W664P-33A | Attaching flat knit elastic tubular articles | 5,000 sti/min |
|
| W664P-33B | Attaching flat knit elastic tubular articles | 5,000 sti/min |
|
| W664P-81A | Hemming / inserting elastic | 5,000 sti/min |
|
| M392/KH8B,KH8C/DD3A : Overedger / Attaching tape | ||||
|---|---|---|---|---|
| Seam | 4 | 5 | 4 | 5 | 4 | 5 | 4 | 5 |
| Application | Plain seaming | Plain seaming | Plain seaming | Plain seaming |
| Fabric weight | Medium | Medium | Light to Medium | Light to Medium |
| Subclass | M932-38 | M932-70 | M932-86 | M932-355 |
| No.of needles | 2 | 2 | 2 | 2 |
| No.of threads | 4 | 4 | 4 | 4 |
| Needle space (mm) | 2 | 2 | 2 | 2 |
| Overedger width (mm) | 4 (5) | 4 (5) (7) | 4 (5) | 4 (5) |
| Max.stitch length (mm) | 3.7 | 3.7 | 3.7 | 3.7 |
| Diff feed ratio | 0.7-1.7 | 0.7-1.7 | 0.7-1.7 | 0.7-1.7 |
| Presser foot lift (mm) | 5.5 | 5.5 | 5.5 | 5.5 |
| Max.Speed (ti/min) | 6,000 | 6,000 | 7,000 | 6,000 |
| Needles | DC x 27 #9(65) |
DC x 27 #9(65) |
DC x 27 #9(65) |
DC x 27 #9(65) |
Accessories:
LC : Pneumatic link collector
PL : Presser foot lift
SC : Needle thread releasing
*standard on KHBC only
